Description

western mule truck cranes  P10-Series

Telescoping Boom Truck Crane

Lifting Capacity: 1000 lbs.
Reach: up to 5'

Featuring a unique, lightweight, portable design, for mounting into pickups, service bodies, vans, loading docks, platforms, etc.

Very compact, weighing only 132 lbs. installed, and with a fold-down boom design requiring minimal mounting space.

Versatile design with 12V-DC, 120V-AC or Manual Hand Crank operated models. Optional Mast Heights, Mounting Bases, and Accessories are also available.

  • 1000 lbs. Max. Lifting Capacity
  •  Portable Design allows the crane to be utilized in multiple locations (additional mounting bases sold separately)
  • Three boom Elevation Angles: 0°, 20°, 40° raised manually
  • Three Position Telescoping Boom: 40", 50" & 60" extended manually
  •  360° Manual Rotation on a Sealed Thrust Bearing
  • Rotation Hand Brake
  • Three models powered by either a
  • 12V-DC, 120V-AC or Manual Hand Crank winch 12V-DC model is Circuit Breaker Protected, 120V-AC model is equipped with Ground Fault Protection
  • 10' Remote Pendant Control
  • 20' x 3/16" Lifting Cable w/Hook
  • Detachable Power Cable
  • Durable Powder Coat Finish
  • 1-Year Warranty (excluding Lifting Cable)
  • Ships LTL Freight, has a lead time

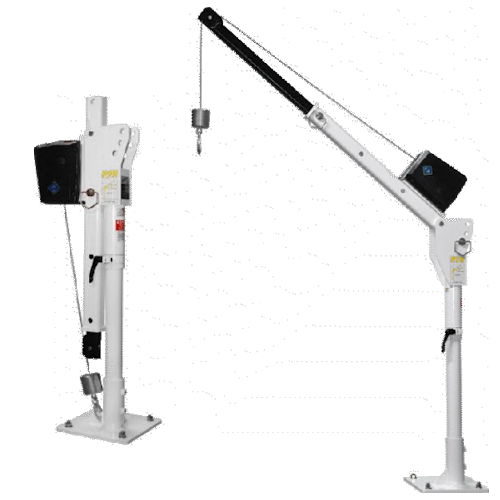

P10 Portable Crane

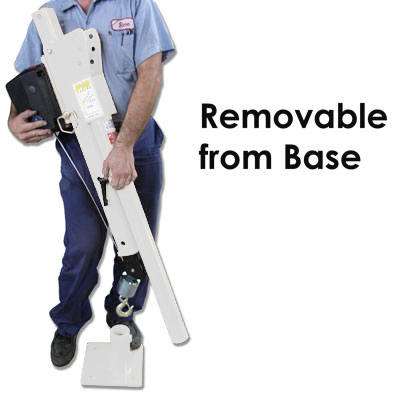

removable crane base

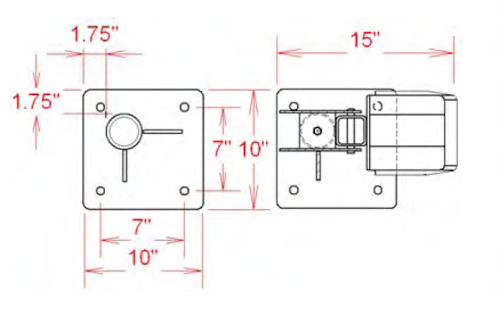

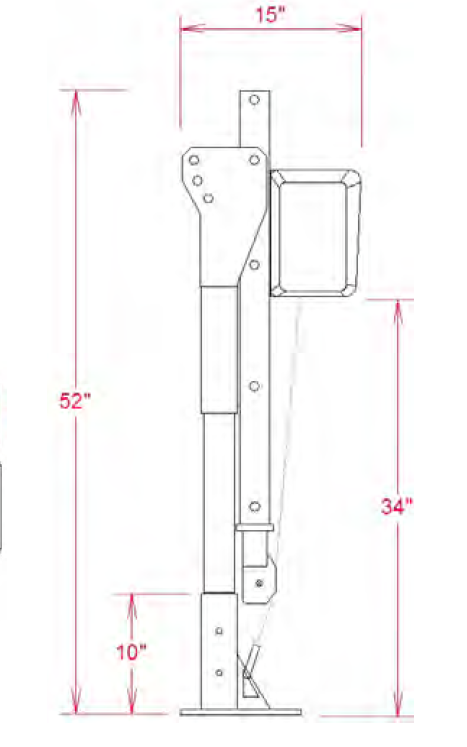

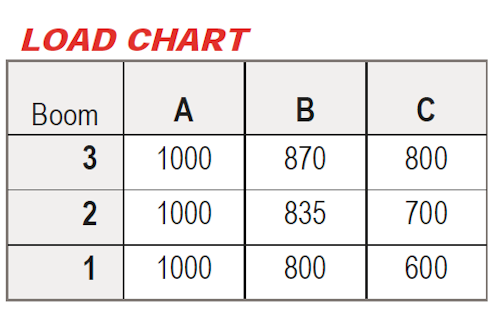

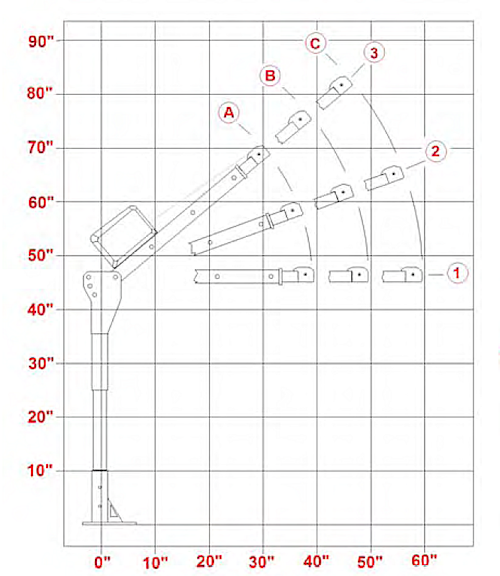

P10 Portable Truck Crane Load ChartP10 Portable Crane Base DimensionsP10 Crane DimensionsP10 Portable Crane Base Dimensions

Model P10-DC P10-AC P10-MN
Wich Type 12V DC 1120V AC Manual Hand Crank
Lifting Capacity 1,000 lbs 1,000 lbs 1,000 lbs
Lifting Height Max. Std. (base to hook) 72" 72" 72"
Storage Height Folded (from base) 52" 52" 52"
Reach Max. (from center of rotation) 60" 60" 60"
Rotation (continuous) with Brake 360° Manual 360° Manual 360° Manual
Lifting Cable 25' x 3/16" 25' x 3/16" 25' x 3/16"
Line Speed (feet/min) No Load / Load 16 / 6 17 / 8 Manual Crank
Power Requirements 12V-DC  70 amps 120V-AC  6 amps Manual
Controls 10' Remote 10' Remote n/a
Mounting Base 10" x 10" 10" x 10" 10" x 10"
Mounting Bolt Hole Pattern 7" x 7" 7" x 7" 7" x 7"
Finish Powder Coated Powder Coated Powder Coated
Weight of Crane / Shipping Weight (Lbs) 132 / 170 132 / 170 121 / 154
Warranty (excluding lifting cable) 1-Year 1-Year 1-Year

PDF
Download P10 Truck Crane Spec Sheet

Manuals:  P10 DC   P10 AC   P10 MN
