Hand Winch Platform Lift Truck

platform lift truck
Other products by Beech Engineering & Manufacturing
Item #: BE-PS-2460W
Our Price: $1,347.00
Model
Quantity:


Description

Manufactured within stringent quality standards, Beech Engineering's Winch Platform Lift Truck provides a lower cost alternative to Hydraulic Material Lifts. Available in lift heights up to 80" and features an oversized hand winch for ease of operation. It is available in two standard sizes for narrow or standard aisles.
  • 1000-pound capacity.
  • Lift heights of 60", 70", and 80".
  • Oversized winch for ease of use and years of trouble-free operation.
  • Welded, unitized - construction platform available in standard sizes of 24" x 24" or 30" x 32".
  • Galvanized aircraft cable with over 4200 lb. yield.
  • Floor lock is standard.
  • 2" by 5" load wheels, 2" x 4" steering casters, phenolic wheels with roller bearings and grease fittings are standard.
  • Safety shield provides operator with unobstructed vision.

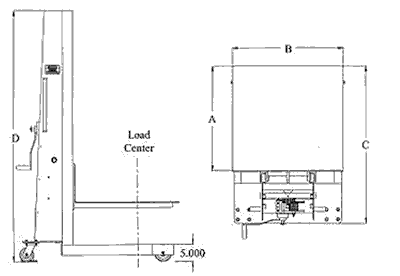

 winch platform lift truck dimensions
Click for larger view
Model # Wheel Dia. Platform Length
Dim. A		 Platform Width
Dim. B		 Legs ID Legs OD Overall Length
Dim. C		 Overall Height
Dim D		 Load Center Platform Lowered Height Platform Raised Height Machine Weight
Front Rear
PS-2460W 5" X 2" 4" X 2" 24" 24" 14" 22" 35 3/4" 72" 15" 5 1/4" 60" 260 lbs
PS-2470W 5" X 2" 4" X 2" 24" 24" 14" 22" 35 3/4" 82" 15" 5 1/4" 70" 270 lbs
PS-2480W 5" X 2" 4" X 2" 24" 24" 14" 22" 35 3/4" 92" 15" 5 1/4" 80" 280 lbs
PS-3060W 5" X 2" 4" X 2" 30" 32" 25" 33" 41 3/4" 72" 18" 5 1/4" 60" 300 lbs
PS-3070W 5" X 2" 4" X 2" 30" 32" 25" 33" 41 3/4" 82" 18" 5 1/4" 70" 310 lbs
PS-3080W 5" X 2" 4" X 2" 30" 32" 25" 33" 41 3/4" 92" 18" 5 1/4" 80" 320 lbs
