Item #: BE-B2000
Our Price: $3,400.00
Quantity:

Description

Designed and manufactured to provide long life and excellent quality, the B-2000 Straddle Floor Crane is built for the most demanding of environments.

With a lift height of 98", while weighing only 425 pounds, the B-2000 is in stock and available for next day shipping.

Model B-1000 Features

  • 2000-pound capacity.
  • Lift height of over 98-1/2" at full capacity.
  • Safety Swivel Hook is attached directly to extension boom.
  • For ease of movement, oversize roller bearing phenolic 6" diameter x 2" wide load wheels and 5" diameter x 2" wide steering casters are standard.
  • Optional wheels available.
  • Optional floor lock available.
  • Safety by-pass relief valve is standard to prevent dangerous overloading.
  • Each machine is factory proof tested to 150% capacity.
  • 2-year warranty on entire machine, 5 years on frame weldment.
  • Exceeds ASME PALD-12 and ANSI Z535 Standards.
  • Weight 425 pounds.
Pump Type 1 Machine Weight Boom position2 Hook Capacity Hook Height3
Min Max
Two Speed Manual 430 lbs 57 1/2" 2000 lbs 29" 98 1/2"
68 1/2" 800 lbs 23 1/2" 106"
78 3/4" 400 lbs 17" 114"
89 1/2" 300 lbs 10" 121"

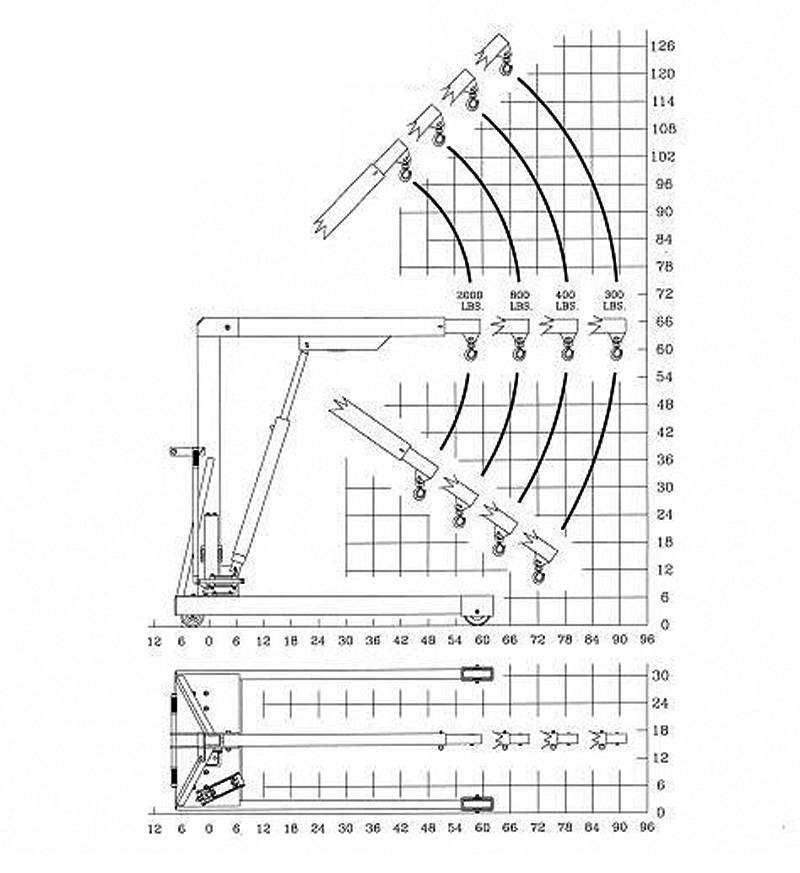

straddle floor crane range

straddle floor crane dimensions

Dimensions
A B C D E
24 1/2" 55 1/4 32 1/4" 69 3/4" 67 1/4"



PDF
Download 2000 lb Straddle Floor Crane Spec Sheet
