Other products by Beech Engineering & Manufacturing
Item #: BE-B2000CW
Our Price: $8,650.00
Quantity:


Description

The Model B-2000CW Hydraulic Portable Floor Crane is designed without front legs, thus eliminating interference with load lifting or equipment.

Featuring Beech Engineering's exclusive, fully automatic, load-sensing, two-speed operation, the B-2000CW includes the counterweight and extension boom at no additional cost.
shop crane dimensions
Pump Type Machine Weight Boom Position Hook Capacity Hook Height Dimensions
Min Max A B OAH
Two Speed manual 3070 lbs 51 3/4" 2000 lbs 34" 107" 30 1/2" 72" 75 1/4"
60 1/4" 1600 lbs 28" 114"
70 1/2" 1400 lbs 21" 122"
80 3/4" 1200 lbs 14" 130"
91 1/4" 1000 lbs 8" 138"
1- Measured from centerline of mast to the centerline of the load hook.
2- Add 9” to maximum hook height to assure overhead clearance.
PDF
Dowload 1 Ton Shop Crane Spec Sheet
Model B-2000CW Features:br>
  • 2000-pound capacity.
  • Lift height of over 105" at full capacity.
  • Safety Swivel Hook is attached directly to extension boom.
  • For ease of movement, our crane has phenolic wheels with roller bearings 8" diameter x 3" wide load wheels and 6" diameter x 2" wide steering casters.
  • Optional wheels and floor lock available.
  • Safety by-pass relief valve is standard to prevent dangerous overloading.
  • Each machine is factory proof tested to 150% of capacity.
  • 2-year warranty on entire machine, 5 year on frame weldment.
  • Exceeds ASME PALD-12 and ANSI Z535 Standards. Weight 3070 pounds (Counterweight = 2400 pounds).

"The Beech Advantage" is a counterweighted crane with no legs out front to interfere with load lifting or placement.

The Beech B-2000CW crane comes complete with counterweight and extension boom at no additional cost.

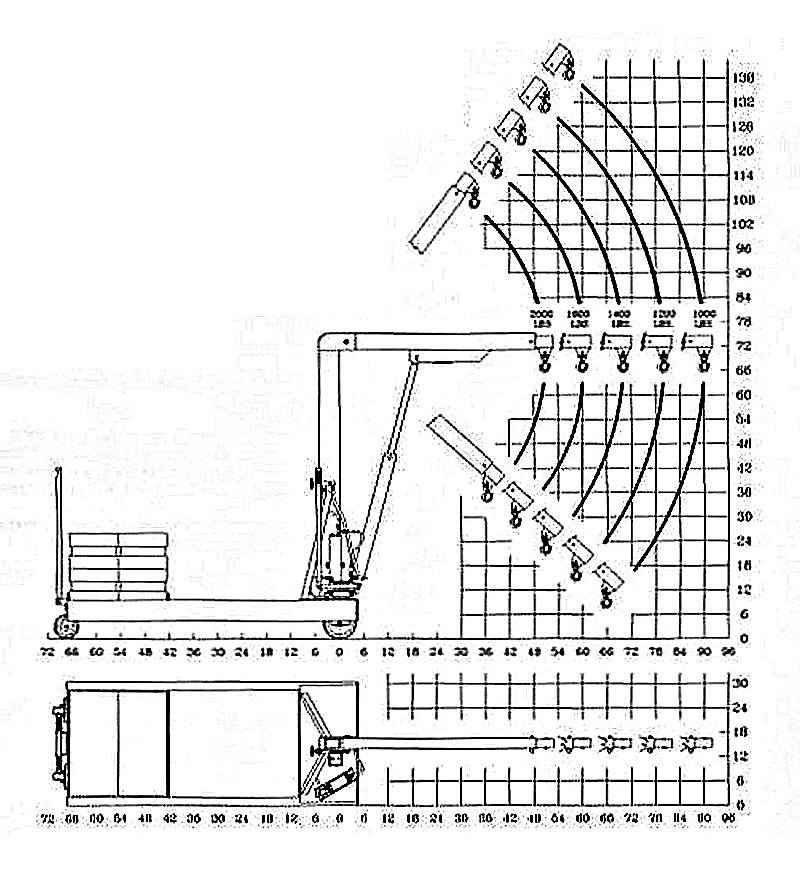

1 ton shop crane load chart
