1 Ton Pickup Truck Bumper Crane

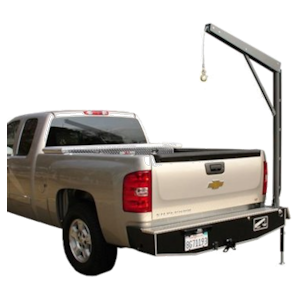

pick up truck bumper crane
Other products by Western Mule
Item #: WM-A-2000
Our Price: $6,400.00
Mast Position
Quantity:

Description

  • 2000 lb lifting capacity
  • Fixed position boom with overall height of 77" & 85" from top of bumper
  • 45" Boom Length
  • Crane Folds Away into bumper
  • Bumper width of 77" for mounting to standard full size pickup trucks
  • Built in Fold-Down Outrigger
  • 360 degree continuos manual rotation on machined surfaces with two needle bearings and one thrust bearing, environmentally sealed
  • 12V DC powered hoist winch with dual internal breaking system, power up and down.
  • Galvanized aircraft quality cable, 50' x 7/32" with a single line breaking strength of 5600 lbs.
  • Hand Held 10' Detachable Pendant Control for controlling hoist winch
  • Powered by the vehicles own battery
  • Swing down outrigger to reduce loading the truck suspension
  • Bumper has Class 3 Receiver Hitch, rated at 5000 lbs of drawbar pull and 1000 lbs load
  • All necessary wiring, brackets, fasteners and hardware for bolt on  mounting to truck frame
  • Pre-wired and tested at factory. Circuit breaker protected
  • Meets ANSI standards for mobile cranes
  • The Crane is OSHA & ANSI compliant as a Man-Lift for Confined Space Activities when equipped with the optional WO-CSR Confined Space Rescue & Recovery System
  • The Bumper is made of 2" X 5" tubular steel construction. The Mast shall be seamless DOM tubing with strong back. The Boom shall be formed from 1 piece of 3/16" ASTM A572 Grade 50 High Tensile Steel. All Sheaves shall be steel with replaceable oil-impregnated bushings. All Sheave Pins shall be made from plated stress proof steel.
  • The Crane shall be finished with a durable Powder Coating, semi-gloss black
  • Manufacturer shall warrant the materials and workmanship for a period of one year from the date of delivery (excluding cable).
 1 ton truck crane dimensions
1 Ton bumper truck crane lifting object into truck bumber truck crane video
Watch Video Demo
