Item #: KM-80060
Our Price: $778.39


Sturdy and strong, what could be simpler than that!

Kargo Master Tube style racks are super strong and easy to use.

4 Tube Cargo Rack w/ Wind Deflector - Compact Vans and Trucks with Cap

Cargo Rack for Compact Vans and Fullsize Trucks with Cap

Dimensions: 110" L x 52" W x 9" H


  • Mounts on top of a pickup cap
  • Nationwide lifetime frame Warranty
  • Yellow Zinc Dichromate fasteners resist corrosion up to five times longer than standard white Zinc fasteners used by competing brands. Self locking nuts stay tight.
  • NO-DRILLING REQUIRED. Our racks INCLUDE a No-Drill Clamp-On option that will not damage your trucks bed.
  • Self locking nuts stay tight
  • Rack easily removed with four bolts.
  • Flexible tubular frame absorbs impact stress that can damage your truck bed.
  • Four cross bars to support ladders, lumber and other long cargo.
  • Rear bar overhangs commercial van to prevent scraping top.
  • Load is centered over rack feet for safety and stability.
  • Easy to install.No drilling necessary by using existing roof mounts.
  • 108” long rack can carry two ladders, up to (12’ step and 30’ extension).
  • No cutting required


  • Rugged 1 5/8” dia. x .083 high tensil strength tubing
  • 500LB. cargo capacity.
  • Zinc Epoxy undercoat
  • High gloss metallic silver marine grade powder coat finish.
  • Swaged tube joints
  • Yellow zinc plated hardware
  • Cosmetic button heads
  • Nyloc self locking nuts
  • 1000 hour ASTM salt spray resistance

Installation Instructions

If you’re looking to carry few ladders or a modest load of construction material, you don’t need to put burden on your truck with a bulky rack which is inappropriately huge for the task. The Kargo Master Pro III medium duty rack is ideal for mini and mid-sized trucks. It can be utilized for carrying lumber, ladders and other types of construction materials on the truck. The rack is made with rugged 1 5/8” dia. x .083 high tensil strength round tubing making it strong and durable. It can carry up to 1000 lbs of weight.

The Pro III medium duty truck racks have 5 inch swaged joints and cross bars, lending it increased strength and durability. The pre-drilled plates on the foot ensure that the truck rack remains safely fastened to the truck bed. The rack also features convenient T-bolts for minimizing the need for drilling into the truck bed. There is also a takeout bar at the rear which is designed in a way that it can be removed without the use of any tool for allowing clearance to store cargo.

All Kargo Master Pro III Series truck racks have been made using the same industrial quality materials and techniques which have set a standard in the manufacturing and transportation industry for more than 32 years. Not only are these trucks racks durable, but they also look great for years and years. Easy installation and assembly makes them a preferred choice among tradesmen.

The Kargo Master Pro III trucks racks come in an excellent coating of either zinc epoxy or zinc chromate plating (yellow zinc). This means that the surface will not fade off or become dull, even in the long run. It also makes the racks resistant to corrosion.

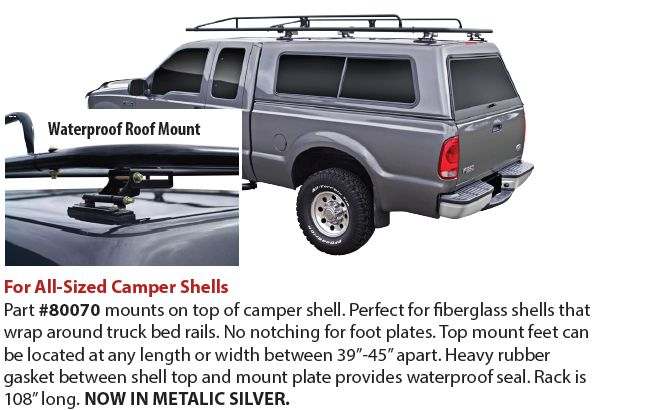

Truck Rack  Mount

The Kargo Master Pro III truck rack is ideal for the caps or tops of pickup trucks which wrap around its bedrail. It sits directly atop the cap of the truck and high mounting feet means that there would be no cutting or notching of the truck cap. It includes thick foot plates that are uniquely designed to be located at strongest section of cap, and are waterproof. There are substantial number of rubber gaskets placed between the top mounted plates and the cap.

The Kargo Master Pro III truck racks with caps has load capacity of up to 200 lbs (restricted by the strength of the truck cap). The rack is 108 inches in length and fits on all kinds of pickup trucks that have cab height pickup caps. Silver metallic powder coat finish with zinc epoxy undercoat is durable and long lasting helping ensure your truck rack will look good and last for years.

The Kargo Master Pro III truck rack for pickup trucks with caps fits the Ford Transit Connect Cargo Van as well. All Kargo Master Pro III series truck racks are made tough and durable to meet the expectations of tough job requirements. The racks besides being extremely functional are also great in design and appearance.

There is something that sets the Kargo Master Pro III series truck racks apart from the rest. Every rack is made using top quality industrial methods and materials which have set a professional benchmark in the industry for more than 30 years.
