Item #: BJX-0127-008-0
Our Price: $0.00
Part #

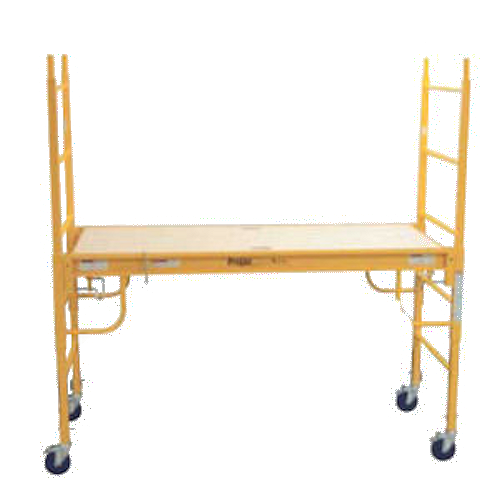

These scaffolding units are lightweight and easy to assemble. They can be stacked up to three units high. They can even be used on stairs. Work platform is 29" wide and 8' long.  Suitable for all types of interior work.

Made in USA

Made in USA

Bil-Jax Scaffolding
  • 29” wide steel frame work platform, 8’ long;  6’ scaffolding and 10’ scaffolding lengths also available.
  • One person can easily set up.
  • All steel square-tube construction, yet light in weight.
  • Standard quality 250 lb. capacity 5” caster with both wheel and swivel locks. A heavy duty 8” caster is available.
  • Patented knurled rungs for additional gripping.
  • Scaffold can easily roll through doorways.
  • Steel frame around plywood deck and 2 steel supports underneath.
  • Heavy duty spring activated locking mechanism with no loose parts
  • Highest load capacity in its class at 1000 lbs.

Download Pro-Jax Utility Scaffolding Brochure(PDF)


stackable scaffolding
Scaffold units are stackable
scaffolding over cabinets
Span type work platform allows scaffolding to straddle obstacles
maintenance scaffolding
Pro-Jax scaffolding is great for routine maintenance
scaffolding on stairs
Pro-Jax scaffolding can be used on stairs
Pro-Jax scaffolding details

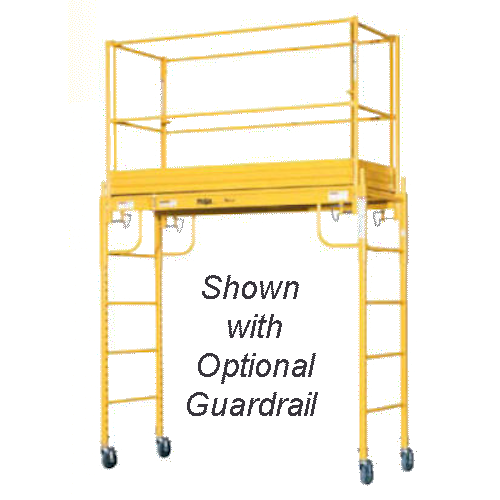

Unique design allows guard railing to stay at platform level at all times. Platform level adjusts in 2” increments. Unique Saf-T-Lok® provides added safety and is more efficient for use.


Part No. Description Platform Height Range Max.Wk.Ht. OverallHt. GdRail Outrig. Wt
0127-008-0 8' Pro-Jax Unit, 29" W x 8' L x 6'H 2'-4' 10'6" 6' No No 147
0127-008-1 8' Pro-Jax Unit with Guardrail System 2'-6' 12'6" 9'6" Yes No 240
0127-008-2 Double Stacked 8' Pro-Jax Units 2'-11'5" 18' 15' Yes Yes 430
0127-008-3 2 Single units  & 1 Additional Height section 2'-17' 23'6" 20'6" Yes Yes 538

Click image to view larger

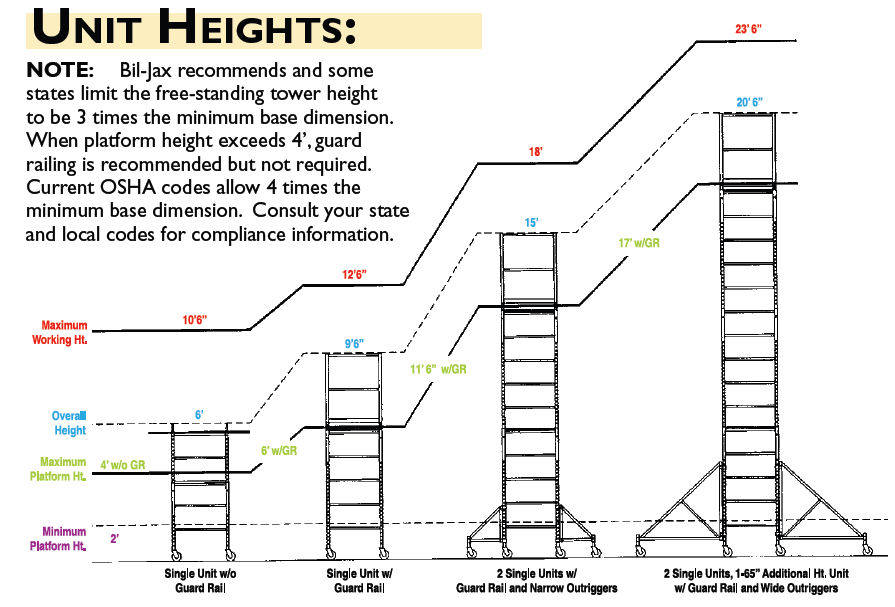

scaffolding stacking specs

Click image to view larger
