U-2000 Truck Bumper Crane

utility truck crane

Other products by Western Mule

Item #:

WM-U-2000

Our Price:

$7,535.00

Mast Position

*

Quantity:

*

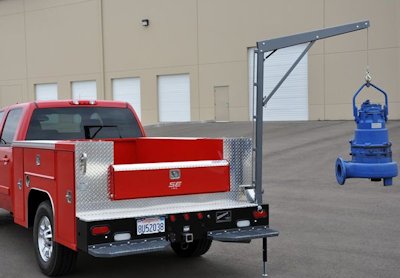

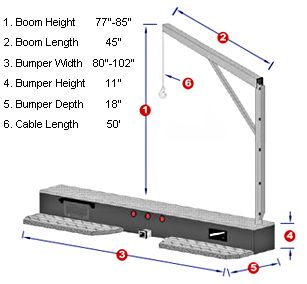

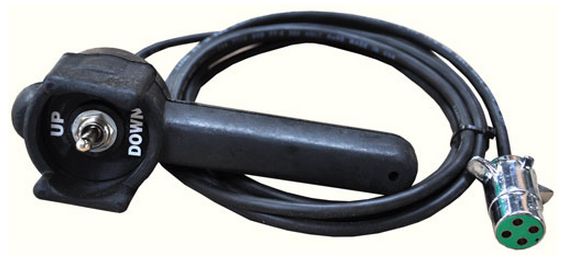

2000 lb lifting capacity Fixed position boom with overall height of 77" & 85" from top of bumper 45" Boom Length Crane Folds Away into bumper Bumper width of 80" - 102" for mounting to standard full size pickup trucks Built in Fold-Down Outrigger Two (2)-piece Aluminum Diamond Plate Cover, with a continuous stainless steel hinge attached with stainless steel rivets and a magnetic latch to secure the cover when closed. Two (2) individual steps mounted flush with the bottom of the bumper. The Steps are positioned so as not to interfere with the hitch. The surface of the step is grip strut and bolted to the bumper frame. Three (3) sealed beam LED lights flush mounted in a heavy-duty rubber grommet in the upper center of the bumper. 360 degree continuos manual rotation on machined surfaces with two needle bearings and one thrust bearing, environmentally sealed 12V DC powered hoist winch with dual internal breaking system, power up and down. Galvanized aircraft quality cable, 50' x 7/32" with a single line breaking strength of 5600 lbs. Hand Held 10' Detachable Pendant Control for controlling hoist winch Powered by the vehicles own battery Swing down outrigger to reduce loading the truck suspension Bumper has Class 4 Receiver Hitch, rated at 10,000 lbs of drawbar pull and 1200 lbs load All necessary wiring, brackets, fasteners and hardware for bolt on mounting to truck frame Pre-wired and tested at factory. Circuit breaker protected Meets ANSI standards for mobile cranes The Crane is OSHA & ANSI compliant as a Man-Lift for Confined Space Activities when equipped with the optional WO-CSR Confined Space Rescue & Recovery System The Bumper is made of 2" X 5" tubular steel construction. The Mast shall be seamless DOM tubing with strong back. The Boom shall be formed from 1 piece of 3/16" ASTM A572 Grade 50 High Tensile Steel. All Sheaves shall be steel with replaceable oil-impregnated bushings. All Sheave Pins shall be made from plated stress proof steel. The Crane shall be finished with a durable Powder Coating, semi-gloss black Manufacturer shall warrant the materials and workmanship for a period of one year from the date of delivery (excluding cable).

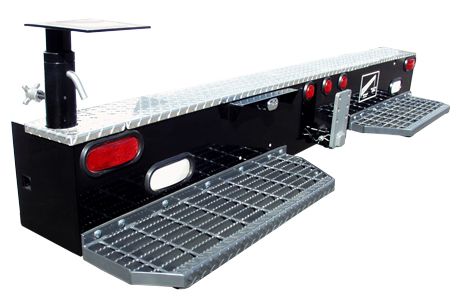

Built-in rear steps & 3 LED sealed beam lights (Shown with options WO-60, WO-18, WO-19, & WA-45 as well)
