Item #: BE-B1000CW
Our Price: $3,739.00
Quantity:


Description

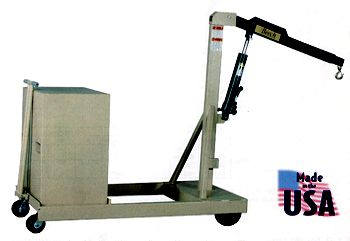

The Model B-1000CW Hydraulic Shop Crane is designed without front legs, thus eliminating interference with load lifting or equipment.

Featuring Beech Engineering's exclusive, fully automatic, load-sensing, two-speed op eration, the B-1000CW includes the counterweight and extension boom at no additional cost.

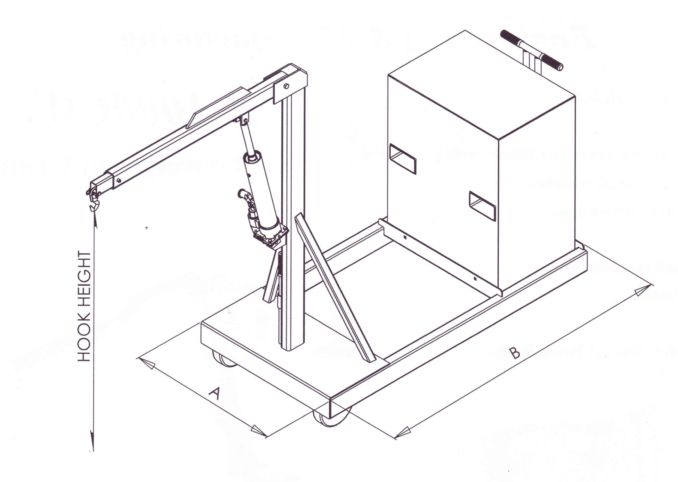

shop crane dimensions
Pump Type Machine Weight Boom Position Hook Capacity Hook Height Dimensions
Min Max A B OAH
Two Speed manual 1535 lbs 41 1/2" 1000 lbs 21" 91" 30 1/2" 61" 64 34"
47 1/2" 800 lbs 16" 95"
53 1/2" 700 lbs 12" 99"
59 1/2" 600 lbs 6" 104"

PDF
Dowload 1000 lb Shop Crane Spec Sheet

Model B-1000CW Shop Crane Features

  • 1000-pound capacity.
  • Lift height of over 90" at full capacity.
  • Safety Swivel Hook is attached directly to extension boom.
  • For ease of movement, our crane has phenolic wheels with roller bearings 8" diameter x 2" wide load wheels and 5" diameter x 2" wide steering casters.
  • Optional wheels and floor lock available.
  • Safety by-pass relief valve is standard to prevent dangerous overloading.
  • Each machine is factory proof tested to 150% of capacity.
  • 2-year warranty on entire machine, 5 year on frame weldment.
  • Exceeds ASME PALD-12 and ANSI Z535 Standards. Weight 1615 pounds (Counterweight = 1200 pounds).

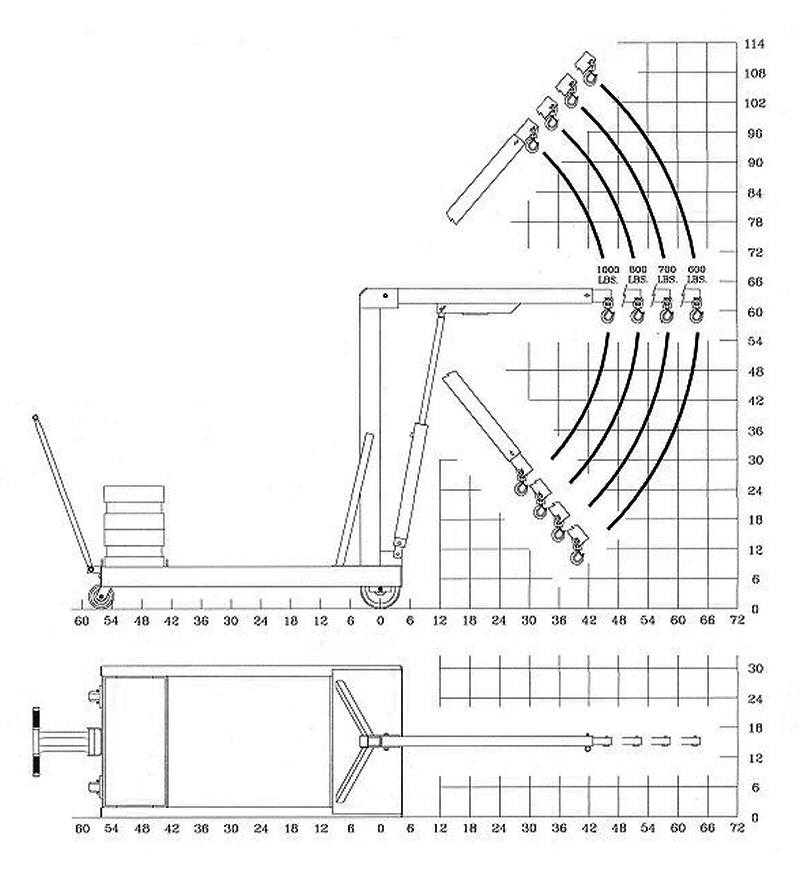

half ton counterweight shop crane load chart
