Model B-1000 Straddle Crane Designed and built to Beech Engineering's rigid specifications, the B-1000 Straddle Crane is ideal for smaller loads. With a lift height of over 100", the lightweight B-1000 is in stock and available for next day shipping.
Model B-1000 Features
- 1000-pound capacity.
- Lift height of over 100" at full capacity.
- Safety Swivel Hook is attached directly to extension boom.
- For ease of movement, oversize roller bearings phenolic 5" diameter x 2" wide load wheels and 4" diameter x 2" wide steering casters are standard.
- Optional wheels available.
- Optional floor lock available.
- Safety by-pass relief valve is standard to prevent dangerous overloading.
- Each machine is factory proof tested to 150% capacity.
- 2-year warranty on entire machine, 5 years on frame weldment.
| Pump Type 1 |
Machine Weight |

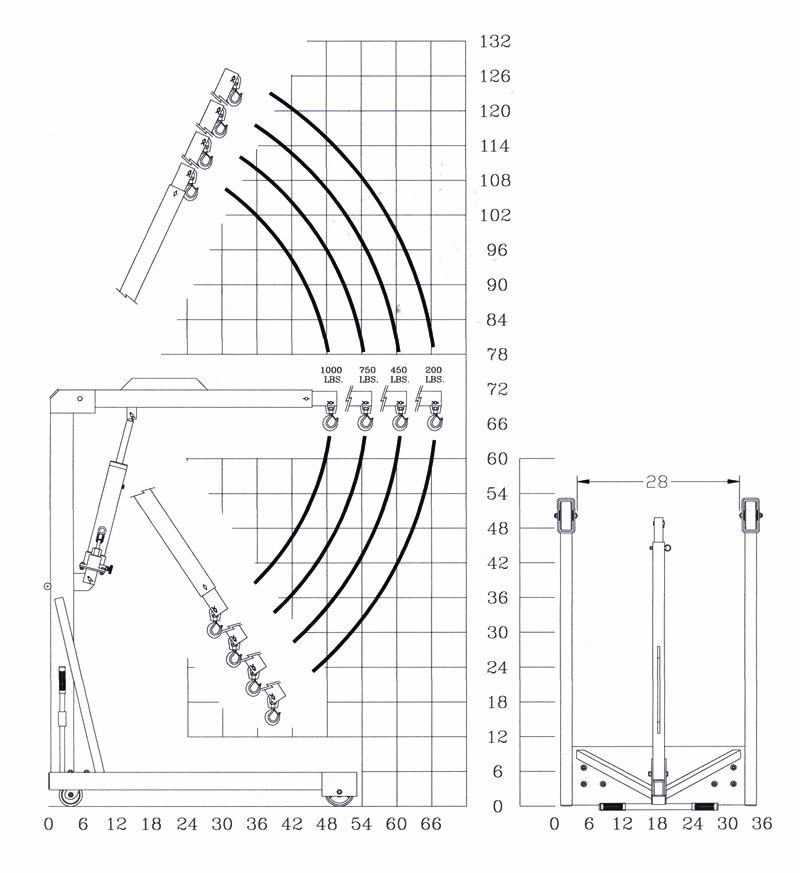

Boom position2 |
Hook Capacity |
Hook Height3 |
| Min |
Max |
| Single Speed Manual |
200 lbs |
46 3/8" |
1000 lbs |
30" |
105" |
| 52 3/8" |
750 lbs |
25" |
110" |
| 58 1/4" |
450 lbs |
20" |
116" |
| 64 1/4" |
200 lbs |
15" |
121" |

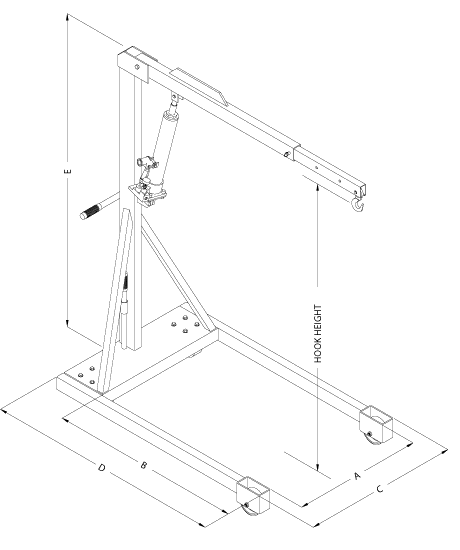

| Dimensions |
| A |
B |
C |
D |
E |
| 28" |
43" |
35 7/8" |
53 1/8" |
71 7/8" |
