Description

western mule truck cranes

P7-Van

Telescoping Boom Van Crane

Lifting Capacity: 700 lbs.
Boom Length: up to 43"

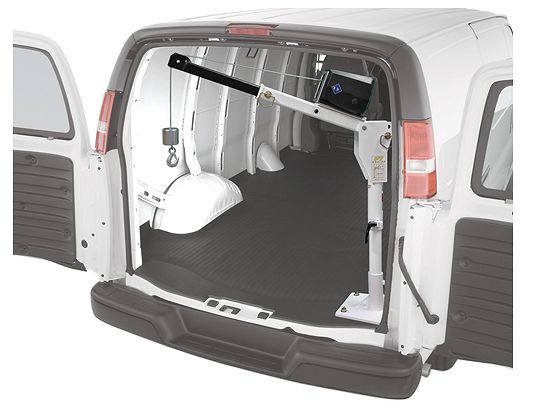

portable van crane top
  • 700 lbs. Max. Lifting Capacity
  •  Portable Design allows the crane to be utilized in multiple locations (additional mounting bases sold separately)
  • Three boom Elevation Angles: 0°, 20°, 40° raised manually
  • Two Position Telescoping Boom: 33" & 43" extended manually
  •  360° Manual Rotation on a Sealed Thrust Bearing
  • Rotation Hand Brake
  • Circuit Breaker Protected
  • 10" Remote Pendant Control
  • Detachable Power Cable
  • 20' x 3/16" Lifting Cable w/Hook
  • Durable Powder Coat Finish
  • 1-Year Warranty (excluding Lifting Cable)
portable van crane bottom

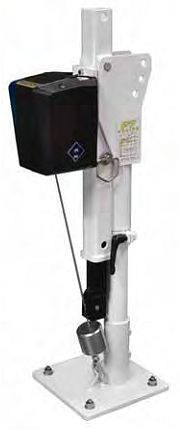

portable van crane folded down
Unique Compact Fold Down Boom

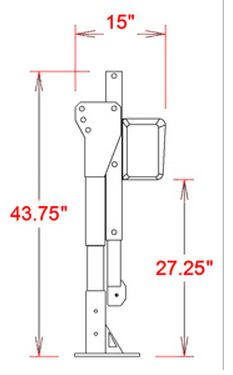

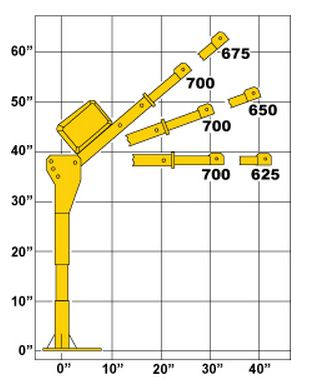

portable crane load chart folded up crane dimensions
Model P7 Van
Wich Type 12V DC
Lifting Capacity 1,000 lbs
Lifting Height Max. Std. (base to hook) 72"
Storage Height Folded (from base) 52"
Reach Max. (from center of rotation) 60"
Rotation (continuous) with Brake 360° Manual
Lifting Cable 25' x 3/16"
Line Speed (feet/min) No Load / Load 16 / 6
Power Requirements 12V-DC  70 amps
Controls 10' Remote
Mounting Base 10" x 10"
Mounting Bolt Hole Pattern 7" x 7"
Finish Powder Coated
Weight of Crane / Shipping Weight (Lbs) 132 / 170
Warranty (excluding lifting cable) 1-Year

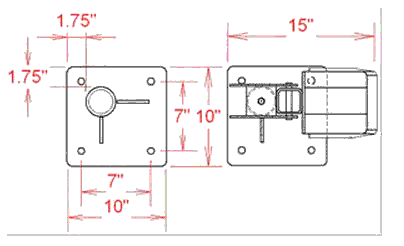

portable van crane base dimensions
portable crane bases
  PDF
Download
P7 Portable Van Crane Spec Sheet


P7 Portable Crane Manual
