Item #: BE-B3000
Our Price: $3,314.00
Quantity:


Description

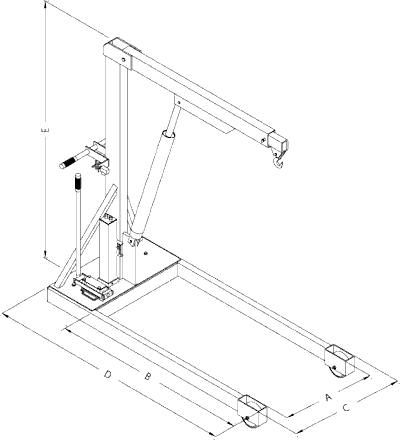

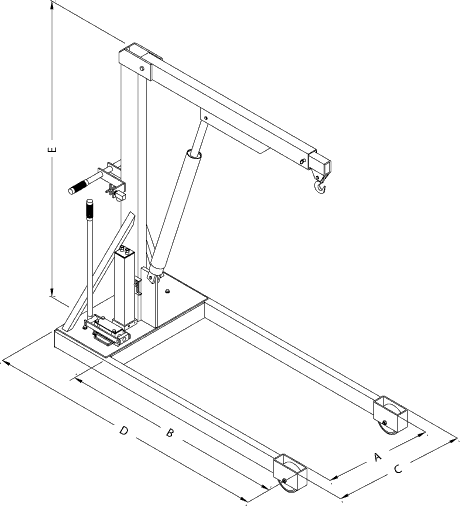

floor shop crane dimensions
Click image for full size
Dimensions
A B C D E
24 1/2" 64 1/4 35" 79" 76"

Featuring the highest capacity of any of our floor or shop cranes, the B-3000 can carry up to 3,000 pounds safely and easily.

With a lift height of 105", while weighing only 525 pounds, the B-3000 is in stock and available for next day shipping.

B3000 Shop Crane Features:

  • 3000-pound capacity.
  • Lift height of over 105" at full capacity.
  • Safety Swivel Hook is attached directly to extension boom.
  • For ease of movement, oversize roller bearing phenolic 8" diameter x 3" wide load wheels and 6" diameter x 2" wide steering casters are standard.
  • Optional wheels available.
  • Optional floor lock available.
  • Safety by-pass relief valve is standard to prevent dangerous overloading.
  • Each machine is factory proof tested to 150% capacity.
  • 2-year warranty on entire machine, 5 years on frame weldment.
  • Exceeds ASME PALD-12 and ANSI Z535 Standards.
  • Weight 525 pounds.
PDF
Download 3000 lb Straddle Shop Crane Spec Sheet

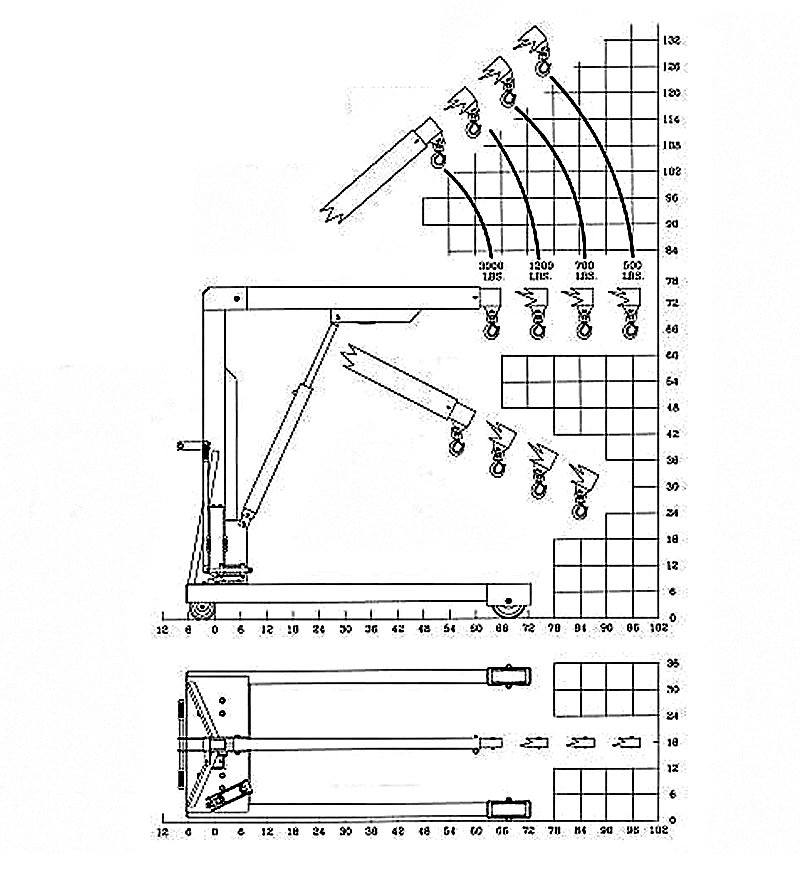

3000 lb floor shop crane load chart

Pump Type 1 Machine Weight Boom position2 Hook Capacity Hook Height3
Min Max
Two Speed Manual 545 lbs 63 3/4" 3000 lbs 39" 105"
74 1/4" 1200 lbs 34 1/2" 112 1/2"
85" 700 lbs 30" 120"
95 1/2" 500 lbs 25" 127"
