Electric Operated Jib Crane

Other products by Vestil Mfg

Item #:

VS-WTJ-20-3-DC

Our Price:

$0.00

Model

Quantity:

Designed for material handling applications on docks, in warehouses or in truck beds. Choose either intermittent or continuous duty winches with reaches from 3 to 9 feet. Available in AC or DC power. Meet ANSI and OSHA specifications.

Download Manual

Item	Model	Operation	Capacity (lbs.)	Boom Reach	Boom Height	Net Weight
	A) Intermittent use cranes feature rotation hand brakes that offer unlimited 360° positioning. Mast mounts permanently. Boom adjusts in 12" increments and can be positioned at 3 elevations. DC models include 46 feet of 3/16" aircraft-grade wire rope with swivel hook and safety latch. Folds for storage. Choose either 12V DC, 1HP with 12 foot removable plug-in pendant control or 120V AC 1/3 HP with fingertip switch to raise and lower hook.
A	WTJ-20-3-DC	12V DC	2,000	40"-63"	52"-85"	280
A	WTJ-20-4-DC	12V DC	2,000	52"-87"	52"-83"	298
A	WTJ-20-3-AC	115V AC	2,000	40"-63"	52"-87"	280
A	WTJ-20-3-AC-CSA	115V AC (CSA Approved Electric Winch - For sale only in Canada)	2,000	40"-63"	52"-87"	280

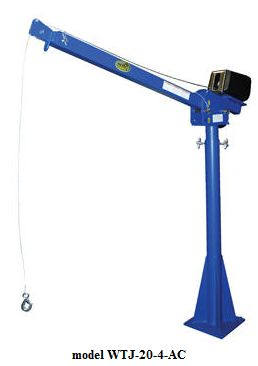

A	WTJ-20-4-AC	115V AC	2,000	52"-87"	53"-83"	298
A	WTJ-20-4-AC-CSA	115V AC (CSA Approved Electric Winch - For sale only in Canada)	2,000	52"-87"	53"-53"	298
	B) The economical answer to your material handling problems. Offers light-duty, intermittent use. Up to 1500 pounds capacity at 36" boom extension. 360° locking manual rotation, 25 feet of 7/32" cable with swivel snatch block and safety latch. 12" x 12" mounting plate.
B	WTJ-E-15-3-DC	12V DC	1,500	42" - 66"	53" - 70"	140
B	WTJ-E-15-3-AC	115V AC	1,500	42" - 66"	53" - 70"	140
B	WTJ-E-15-3-AC-CSA	115V AC (CSA Approved Electric Winch- For sale only in Canada)	1,500	42" - 66"	53" -+ 70"	140
