The adjustable work platform /
scaffold tower without the hassles...
Just CRANK it up to raise!
|
Made in USA |
The
Model 1101work platform just got bigger! It's now available in 96"
long version, the Model 1101-96
The TELE-TOWER® Adjustable Work Platform / scaffold
tower Model 1101-96 is extremely versatile. Easily assembled, the scaffolding
work platform
can be adjusted to working heights by easily cranking the winch.
 |
-
Saves time setting up and taking down. Assembly time is about 10 minutes
-
Unique winch system allows
the work platform to telescope up and down to raise and lower the
platform heights from 2’ to 11’ at six inch intervals (*up to 18’
working height). For elevations below 6’ simply mount the deck on the
lower rungs. The telescoping system allows for quick height
adjustments just as when working at higher elevations greater than 6’.
Just crank the manual winch.
-
The spring loaded safety lock pins provide
fast, safe, positive work platform heights that can be locked in every
6”.
-
Assembled unit maintains a 6' walk through clearance for working
over and around obstacles
|
|
See it in action below
video |
Versatile outriggers have easy slide-out, lock-in
adjustment. The 6’ base provides stability at higher elevations. (1.83:
height to base ratio)
Slide
one side in when working next to a permanent wall - slide both sides in
when passing through standard 32” doorways. |
 |
For higher elevations, the optional
work platform Extension Model 1177 is available. Reach platform heights from
12.5’- 17.5’ (*up to 24’ working height). Installs
in about 10 minutes!
 The spacious deck allows two workers to work side by
side or allows one person a generous work space. Safe and affordable,
two reasons to replace your motorized units to this cost effective
solution. |
Assembled work platform with safety rails folded) rolls through a 32" x
80" doorway |

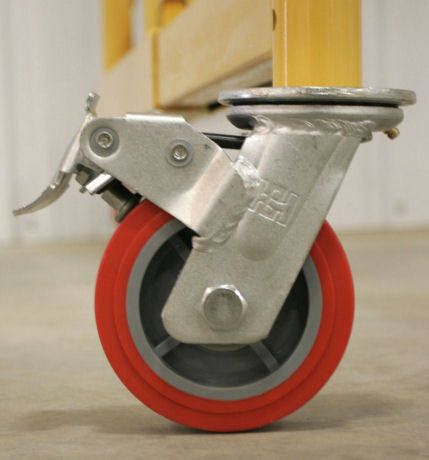

5" Heavy Duty dual locking scaffolding casters |
 |
|

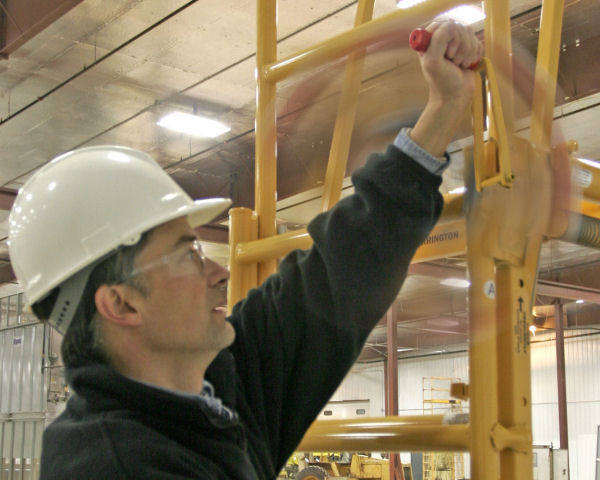

Easily crank the work platform up or down |
 |
Spring loaded safety lock pins provide
fast, safe, positive work platform heights that can be locked in every
6”. |
Telescoping design means no struggling with extra
sections to reach 18’ working heights. (Optional extension available to
reach 24’ working heights.) All necessary components are integral to the
unit. Simply turn the winch.
The Tele-Tower ® work platform prevents wasted time setting up,
adjusting, and tearing down, unlike other scaffolding. No more worries about
losing parts, Tele-Tower® components are integral to the unit. One
person can assemble the unit safely from the ground - no tools needed.
Transport in a van or pickup truck.
Meets applicable U.S. ANSI and OSHA Standards for
rolling work platforms. Made in the U.S.A.
*Working height is approximated by adding platform
height to a worker’s reach.
|
The 1101 adjustable work platform scaffolding is available in 2
models:
the
Model 1101 is 72" long
the Model 1101-96 is 96" long
 |
Complete Unit Consists of:
(2) Telescoping end Sections with outriggers on 5" heavy duty
dual locking scaffold casters.
(1) Connecting beam with cable elevating mechanism.
(6) Interchangeable sway braces.
(1) Steel safety deck with 4" toeboard.
(1) Set of 4 safety rails with 4 safety chains
Operator's Manual
|
Optional Accessories:
Tele-Tower Extension Model 1177
Safety Poles Part #14-02
Safety Rail Storage Cradle- Recommended for onboard
storage of safety rails when ladders are not raised Storage Kit Item
#3234
Reduction Drive Part #08-23
|
